Managing users
The user management function allows you to do the following:
• Adding a local user, and specifying the password, access level, and service types for the user.
• Setting the super password for non-management level users to switch to the management level.
• Switching to the management level from a lower level.
Adding a local user
1. Select Device > Users from the navigation tree.
2. Click the Create tab.

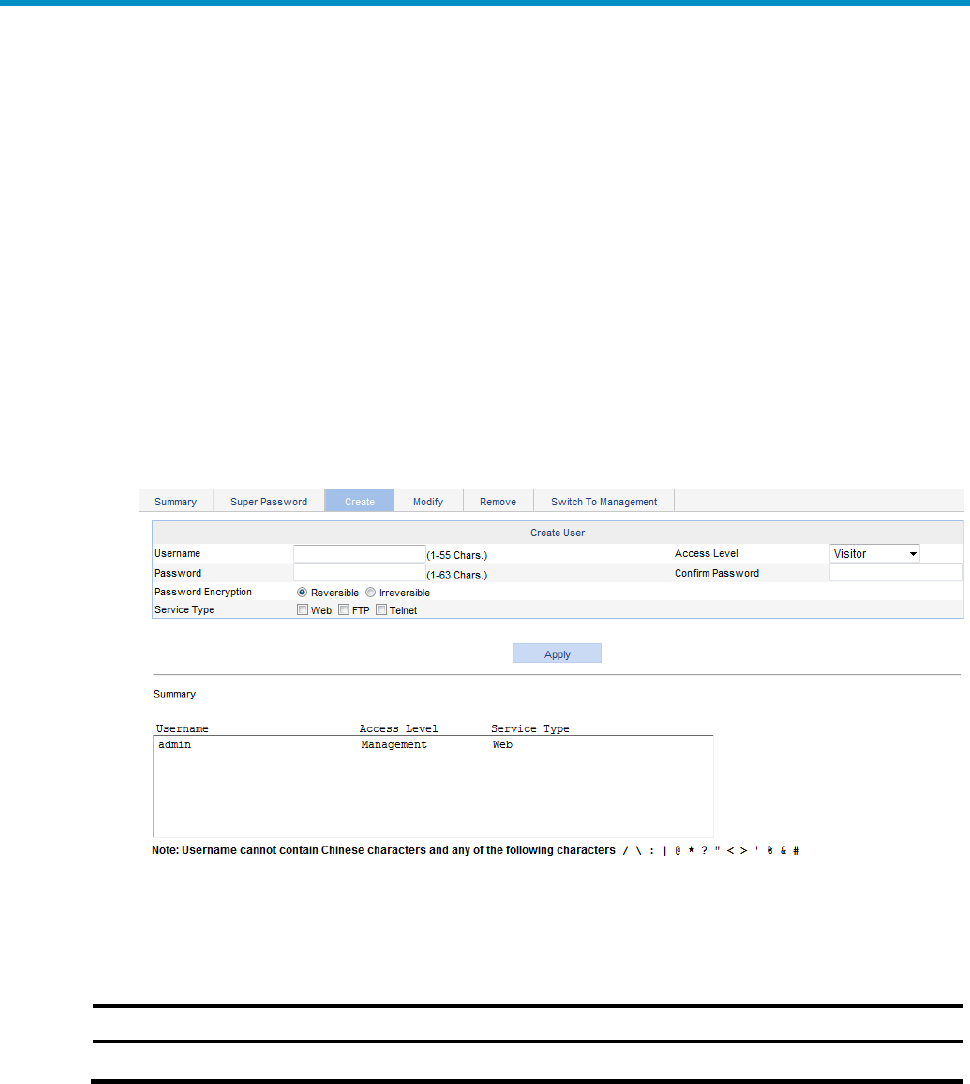

Figure 72 Adding a local user
3. Configure a local user as described in Table 18.
4. Click Apply.
Table 18 Configuration items
Item Descri
p
tion
Username Enter a username for the user.
