277
d. Click Apply.

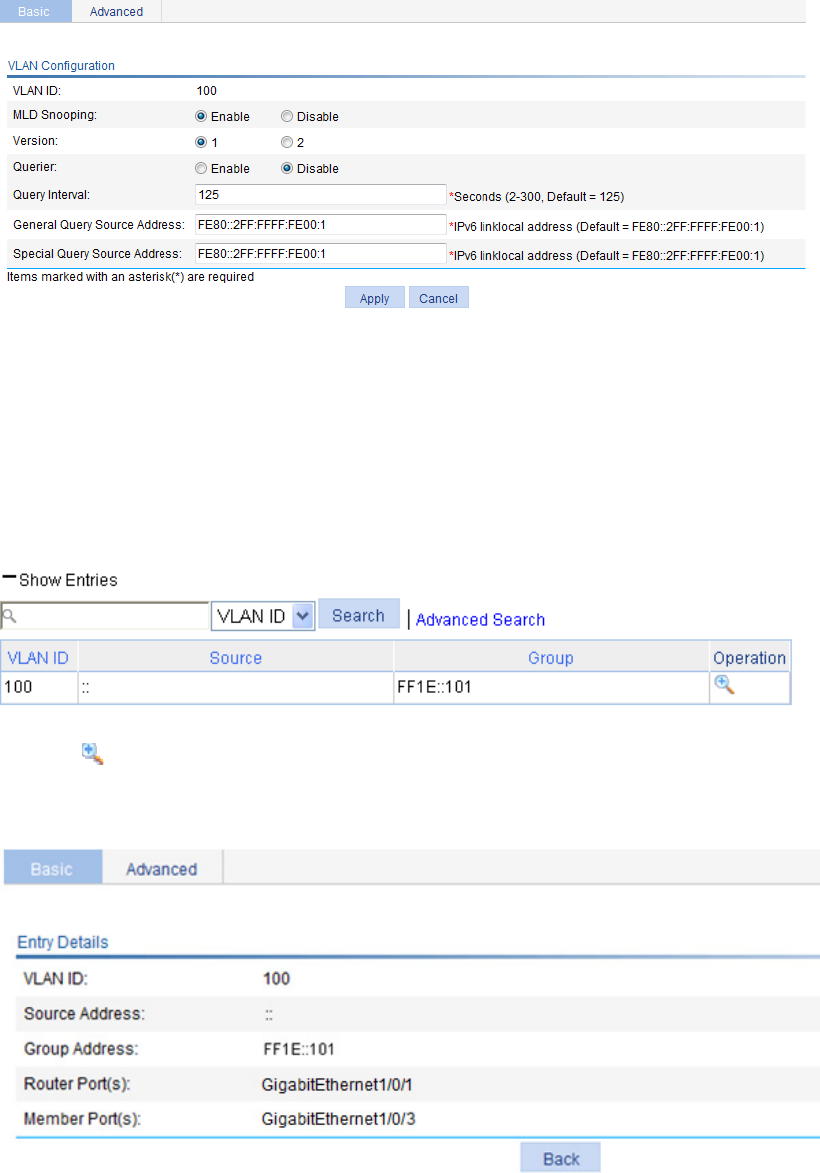

Figure 251 Enabling MLD snooping in VLAN 100
Verifying the configuration
1. Select Network > MLD snooping from the navigation tree.
2. Click Show Entries in the basic VLAN configuration page to display information about MLD
snooping multicast forwarding entries.
Figure 252 Displaying MLD snooping multicast forwarding entries
3. Click the icon for the multicast entry (::, FF1E::101) to display detailed information about this
entry.
Figure 253 Displaying detailed information about the entry
The output shows that GigabitEthernet 1/0/3 of Switch A is listening to multicast streams destined for
IPv6 multicast group FF1E::101.
