SNMPv1/v2c configuration example
Network requirements
As shown in Figure 115 , the NMS at 1.1.1.2/24 uses SNMPv1 or SNMPv2c to manage the switch (agent)
at 1.1.1.1/24, and the switch automatically sends traps to report events to the NMS.

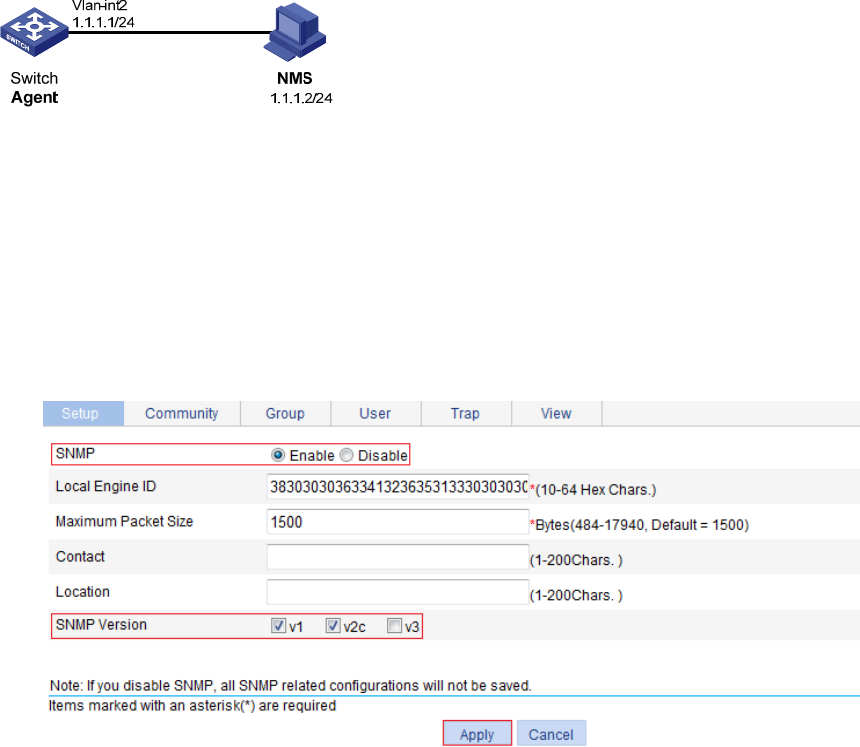

Figure 115 Network diagram
Configuring the agent
1. Enable SNMP:
a. Select Device > SNMP from the navigation tree.
The SNMP configuration page appears.
b. Select the Enable option, and select the v1 and v2c options.
c. Click Apply.
Figure 116 Configuring the SNMP agent
2. Configure a read-only community:
a. Click the Community tab.
b. Click Add.
The Add SNMP Community page appears.
c. Enter public in the Community Name field, and select Read only from the Access Right list.
d. Click Apply.
