347

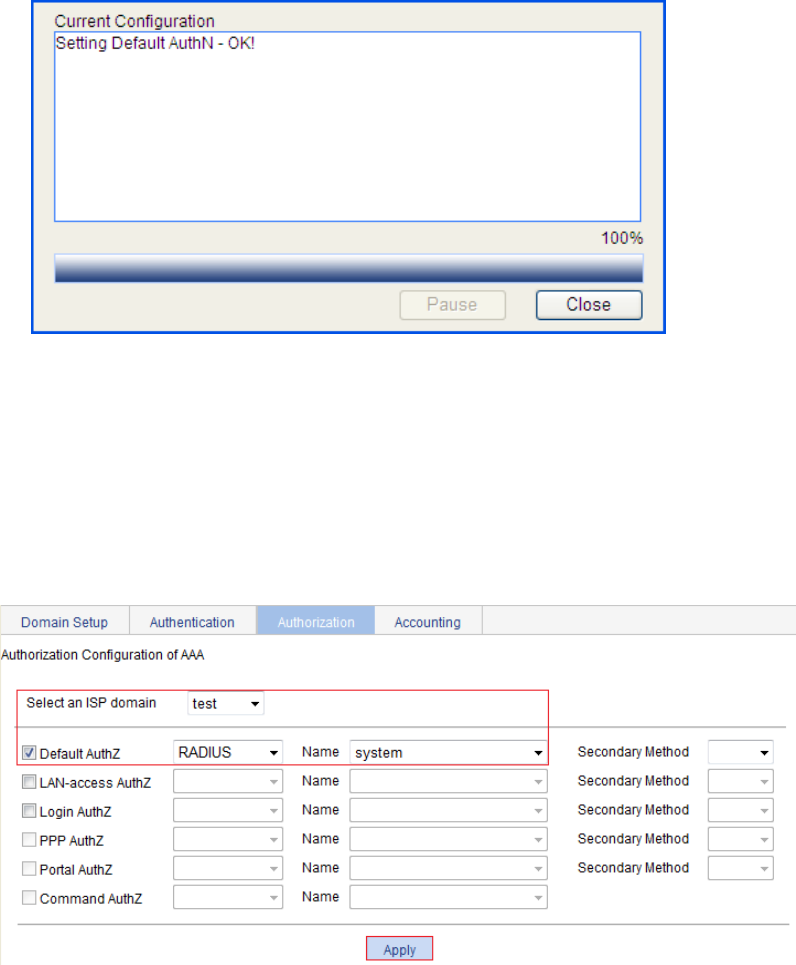

Figure 326 Configuration progress dialog box
e. After the configuration process is complete, click Close.
3. Configure AAA authorization method for the ISP domain:
a. Click the Authorization tab.
b. Select test from the Select an ISP domain list.
c. Select Default AuthZ, select RADIUS as the default authorization method, and select the
authorization scheme system from the Name list, as shown in Figure 327.
Figure 327 Configuring the AAA autho
rization method for the ISP domain
d. Click Apply.
e. After the configuration process is complete, click Close.
4. Configure AAA accounting method for the ISP domain:
a. Click the Accounting tab.
b. Select test from the Select an ISP domain list.
c. Select Accounting Optional and select Enable from the list.
d. Select Default Accounting, select the accounting method RADIUS, and select the accounting
scheme system from the Name list.
e. Click Apply.
