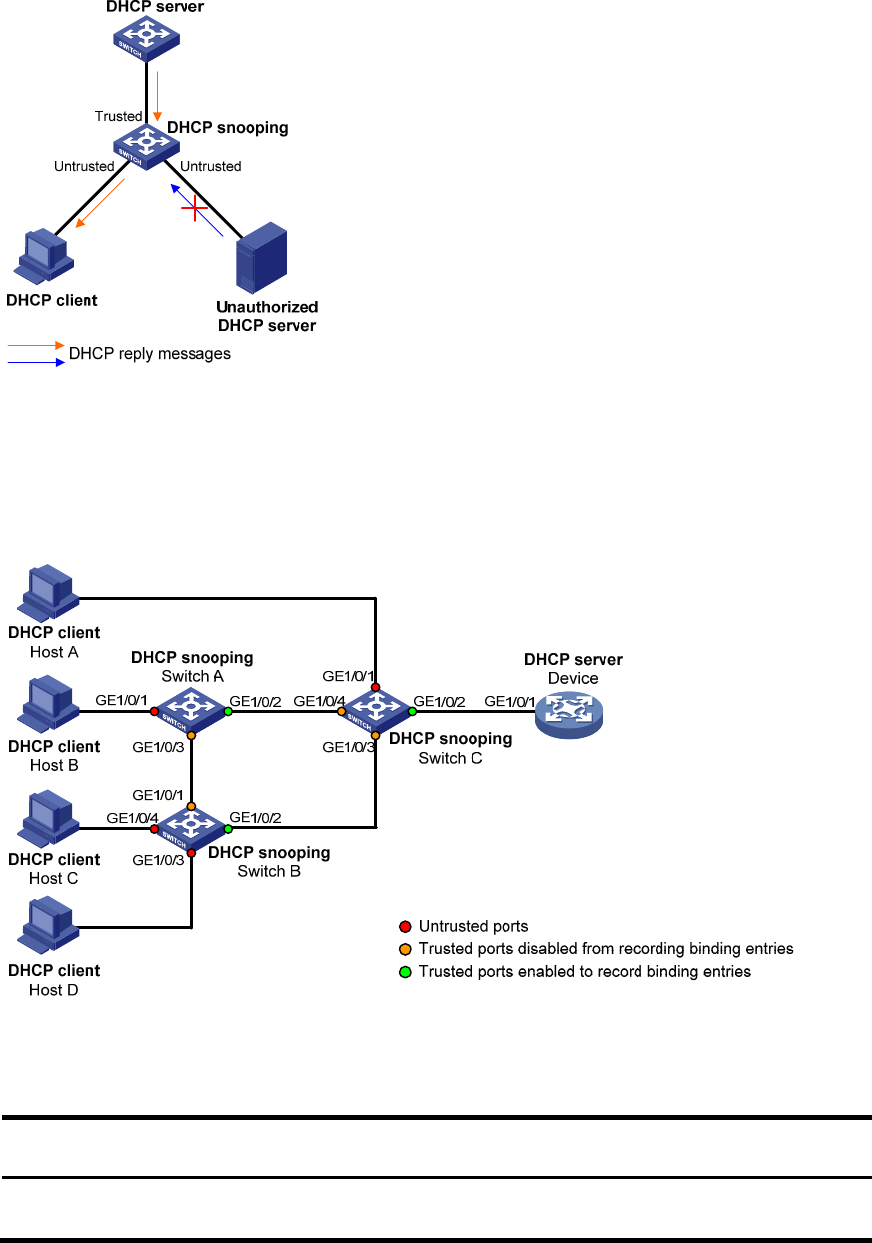

Figure 283 Trusted and untrusted ports
In a cascaded network as shown in Figure 284, configure each DHCP snooping device's ports
connected to other DHCP snooping devices as trusted ports. To save system resources, you can disable
the untrusted ports that are not directly connected to DHCP clients from generating DHCP snooping
entries.
Figure 284 Trusted and untrusted ports in a cascaded network
Table 98 describes roles of the ports shown in Figure 284.
Table 98 Roles of ports
Device Untrusted port
Trusted port disabled from
recordin
g
bindin
g
entries
Trusted port enabled to
record bindin
g
entries
Switch A
GigabitEthernet
1/0/1
GigabitEthernet 1/0/3 GigabitEthernet 1/0/2
