375
c. Select Without domain name for the username format.
3. In the RADIUS Server Configuration area, click Add to configure the primary authentication server:
a. Select Primary Authentication as the server type.
b. Enter 10.110.91.146 as the IP address.
c. Enter 1812 as the port.
d. Enter expert as the key and enter expert again to confirm the key.
e. Click Apply.

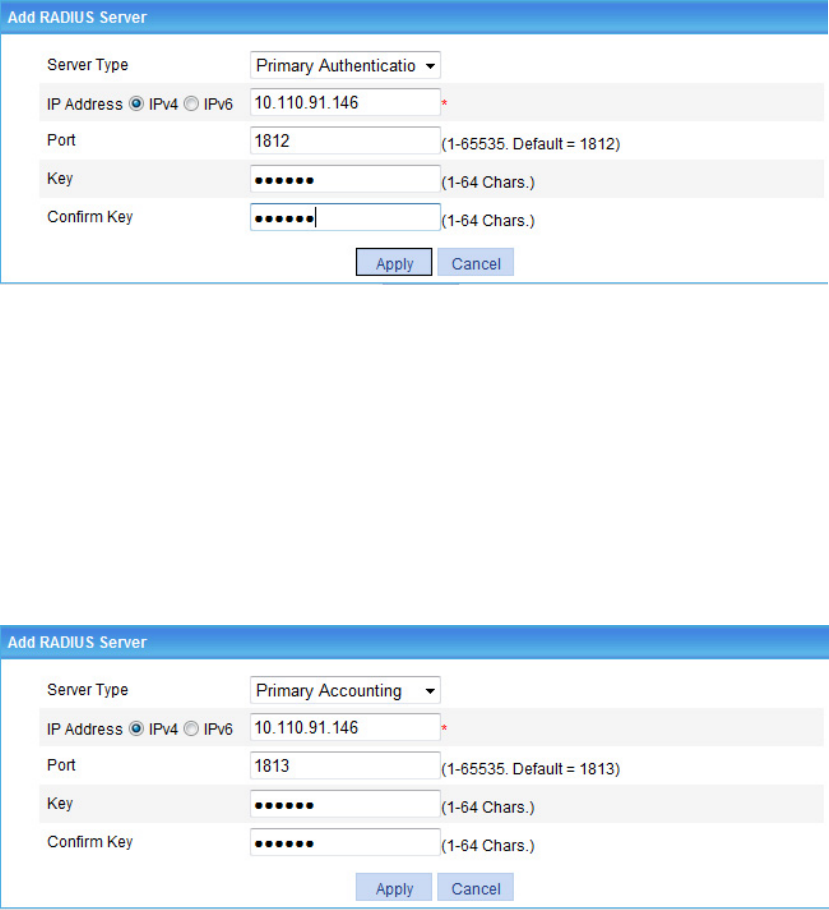

Figure 355 RADIUS authentication server configuration page
4. In the RADIUS Server Configuration area, click Add again to configure the primary accounting
server:
a. Select Primary Accounting as the server type.
b. Enter 10.110.91.146 as the IP address.
c. Enter 1813 as the port.
d. Enter expert as the key and enter expert again to confirm the key.
e. Click Apply.
The RADIUS scheme configuration page refreshes. The added servers appear in the server list.
Figure 356 RADIUS accounting server configuration page
5. Click Apply.
