349
c. In the IP Address Filter area, select Destination IP Address:
− Enter 10.0.0.1 as the destination IP address.
− Enter 0.0.0.0 as the destination IP address wildcard.
d. Click Add.

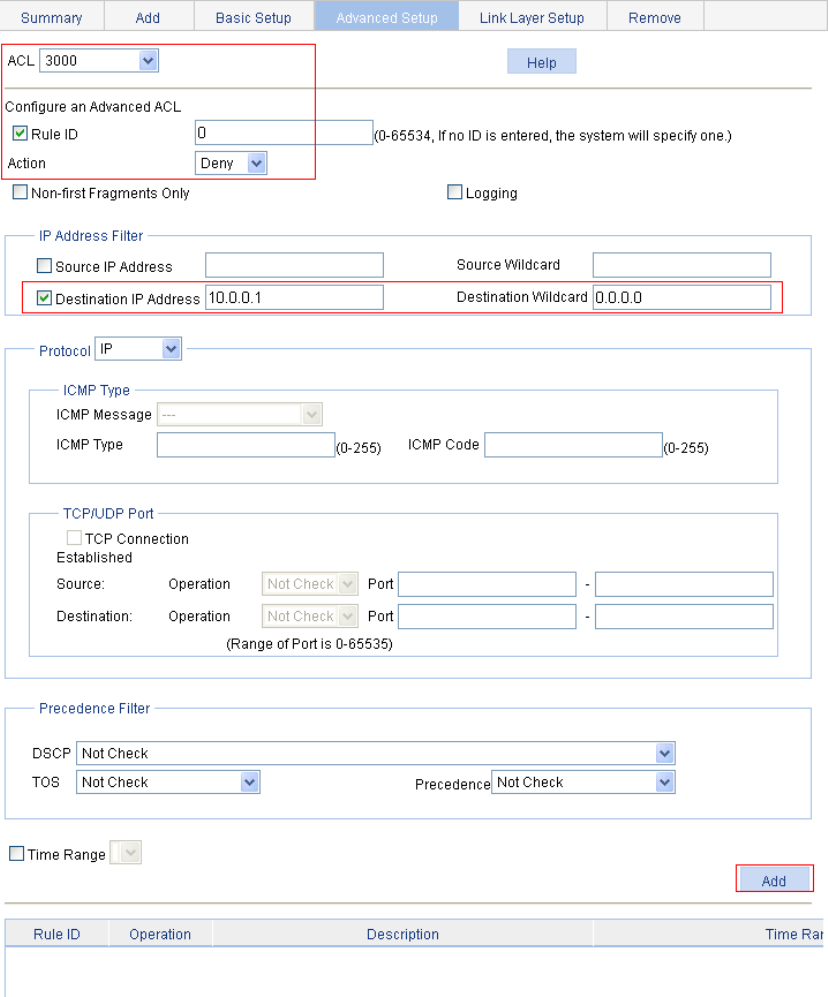

Figure 330 ACL rule configuration
Configuring 802.1X
1. Configure 802.1X globally:
a. From the navigation tree, select Authentication > 802.1X.
b. Select Enable 802.1X.
