496
a. Click the Setup tab.
b. Select policy1.
c. Select class1 from the Classifier Name list.
d. Select behavior1 from the Behavior Name list.
e. Click Apply.

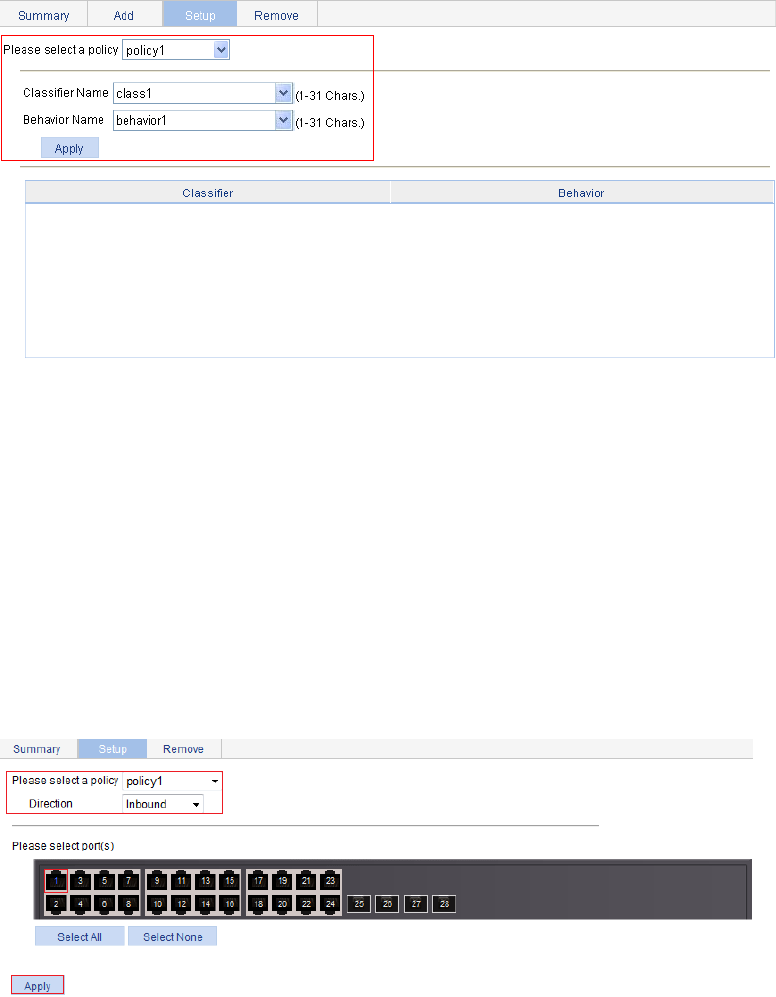

Figure 486 Configuring classifier-behavior associations for the policy
10. Apply the QoS policy in the inbound direction of interface GigabitEthernet 1/0/1:
a. Select QoS > Port Policy from the navigation tree.
b. Click the Setup tab.
c. Select policy1 from the Please select a policy list.
d. Select Inbound from the Direction list.
e. Select port GigabitEthernet 1/0/1.
f. Click Apply.
A configuration progress dialog box appears.
g. Click Close when the progress dialog box prompts that the configuration succeeds.
Figure 487 Applying the QoS policy in the inbound direction of GigabitEthernet 1/0/1
