362
f. After the configuration progress is complete, click Close.

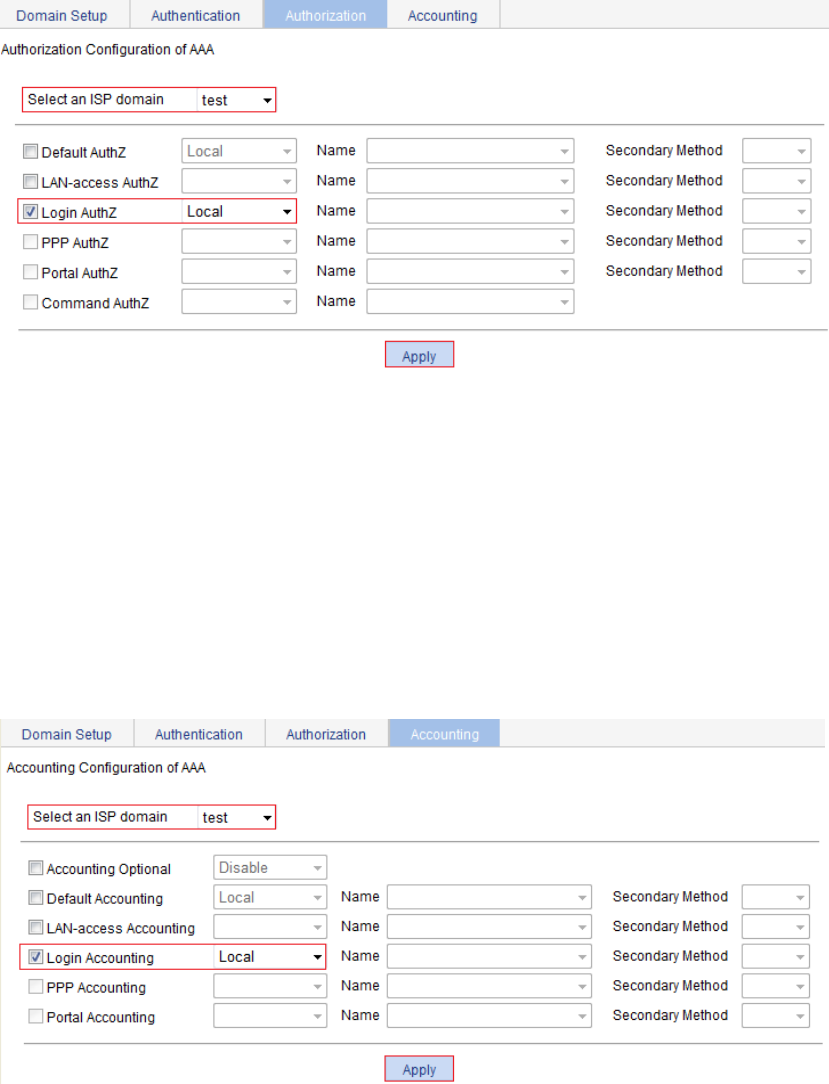

Figure 344 Configuring the ISP domain to use local authorization
7. Configure the ISP domain to use local accounting:
a. Select Authentication > AAA from the navigation tree.
b. Click the Accounting tab.
c. Select the domain test.
d. Select Login Accounting and select the accounting method Local.
e. Click Apply.
A configuration progress dialog box appears.
f. After the configuration process is complete, click Close.
Figure 345 Configuring the ISP domain to use local accounting
Verifying the configuration
Telnet to the switch and enter the username telnet@test and password abcd. You will be serviced as a
user in domain test.
