By default, the Local Information tab is displayed. Table 77 describes the fields.

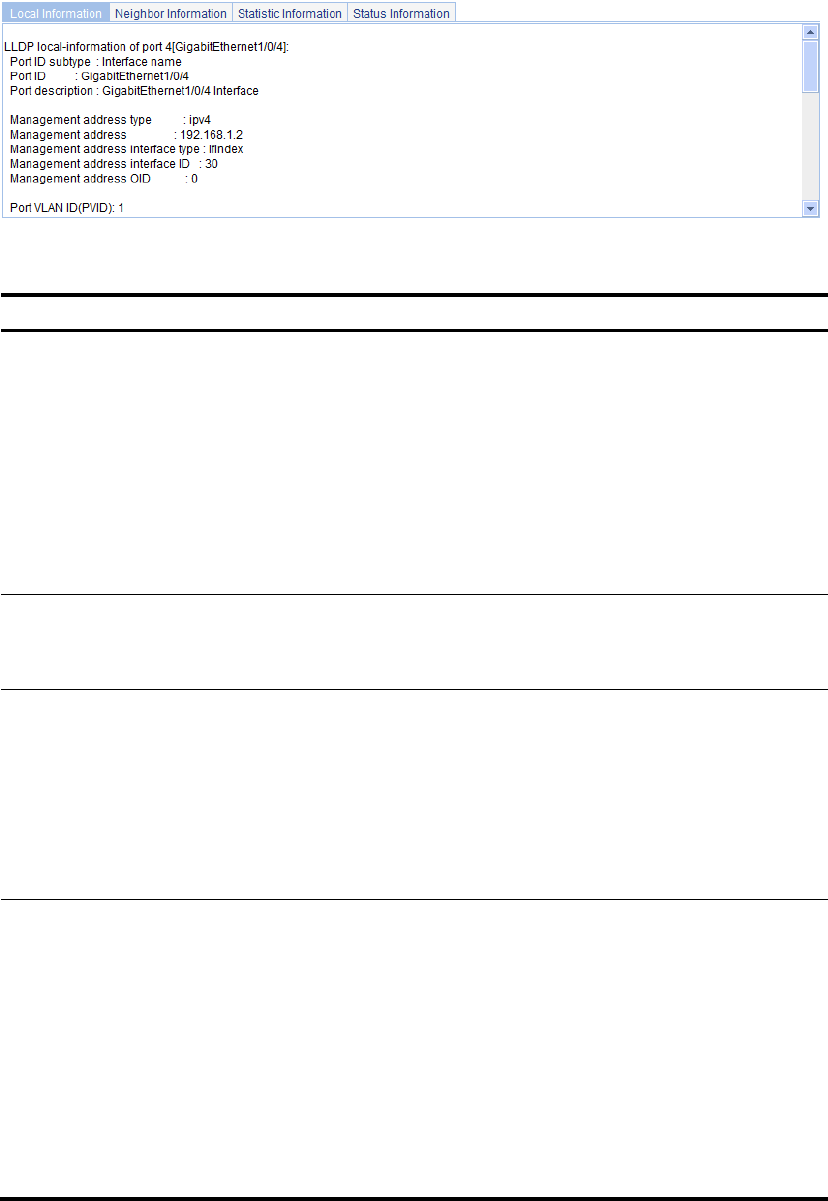

Figure 202 The local information tab
Table 77 Field description
Field Descri
p
tion
Port ID subtype
Port ID subtype:
• Interface alias.
• Port component.
• MAC address.
• Network address.
• Interface name.
• Agent circuit ID.
• Locally assigned—Locally-defined port ID type other than those listed
above.
Power port class
PoE port class:
• PSE—Power sourcing equipment.
• PD—Powered device.
Port power
classification
Power class of the PD:
• Unknown.
• Class0.
• Class1.
• Class2.
• Class3.
• Class4.
Media policy type
Media policy type:
• Unknown.
• Voice.
• Voice signaling.
• Guest voice.
• Guest voice signaling.
• Soft phone voice.
• Videoconferencing.
• Streaming video.
• Video signaling.
