416

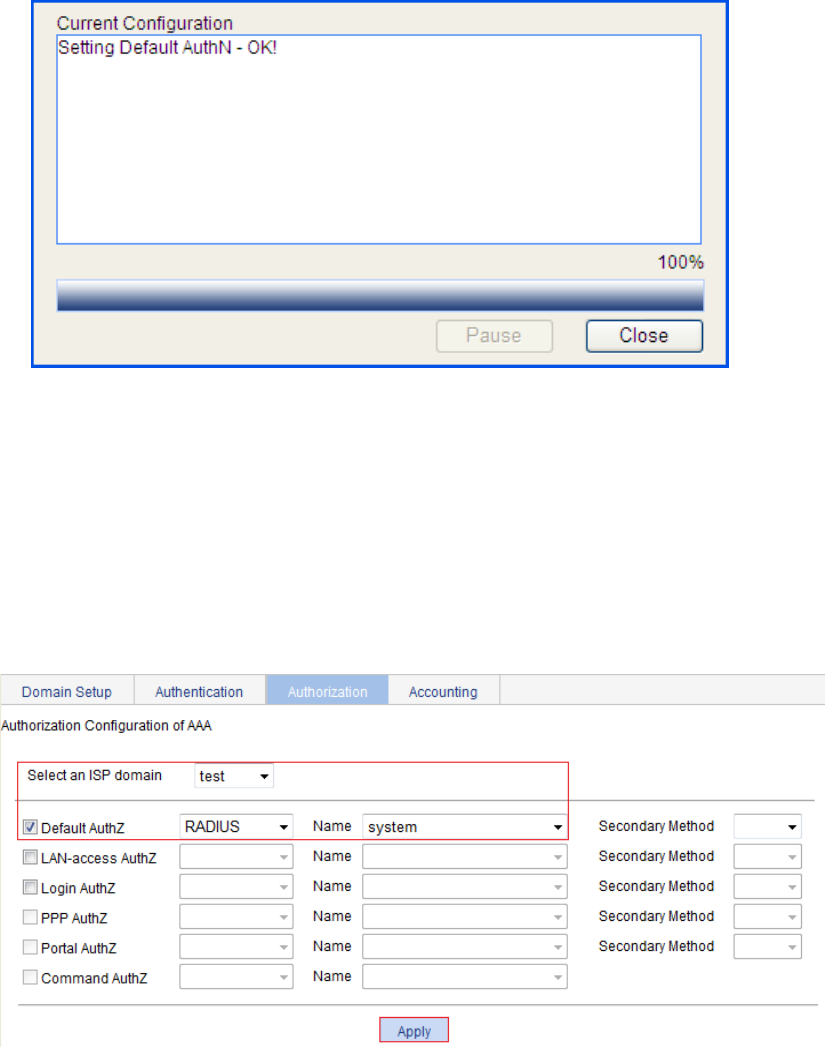

Figure 402 Configuration progress dialog box
e. After the configuration process is complete, click Close.
3. Configure AAA authorization method for the ISP domain:
a. Click the Authorization tab.
b. Select the ISP domain test.
c. Select Default AuthZ, select the authorization mode RADIUS, and select the authorization
scheme system from the Name list.
d. Click Apply.
Figure 403 Configuring the authorization method for the ISP domain
e. After the configuration process is complete, click Close.
4. Configure AAA accounting method for the ISP domain:
a. Click the Accounting tab.
b. Select the ISP domain test.
c. Select Default Accounting, select the accounting method RADIUS, and select the accounting
scheme system from the Name list.
d. Click Apply.
